IR12x15x22.5 INA Needle Bearing Inner Ring 12x15x22.5

IR12x15x22.5 INA Needle Bearing Inner Ring 12x15x22.5
Zoom  Zoom

This image shows the product type but may not be this exact part.

Brand:  INA
Inside Diameter:  12.00mm
Outside Diameter:  15.00mm
Width:  22.50mm

Availability:

Special order, delayed despatch

Special order, delayed despatch

Our Price:  £6.74(Exc. 20% VAT)(£8.09 Inc. VAT)
+

INA


IR12x15x22.5 INA Needle Bearing Inner Ring 12x15x22.5

Needle Roller Bearing Inner Rings are utilised in applications where the shaft cannot be ground and hardened to a suitable raceway tolerance. Inner Rings are available in 2 main types:

  • IR series - Manufactured from hardened and ground bearing steel the raceway surface is precision machined and has a lead-in chamfer on both sides to simplify assembly. Some sizes are available with an lubrication hole, this is identified with the suffix "IS1".
  • LR series - Manufactured from hardened bearing steel, the bore and outside diameter are ground. The side faces are turned and the edges are smoothed. these inner rings have larger tolerances then the IR type.

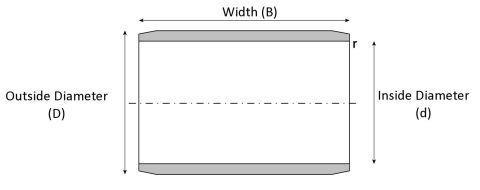

IR12x15x22.5-INA dimension chart - all dimensions in mm unless indicated.

dDBr
121522.50.3
